Highly Efficient Detection
The constant throughput for PT/APTT/FIB/TT/DD: 450T/H
Combined throughput for five test items: 90S/H
20 detection channels, each channel can be used for 3 detection methods: coagulation, immunoturbidimetry, chromogenic substrate assay
2000 cuvettes can be loaded simultaneously, dump style adding cuvettes without system interruption
28 tilted reagent positions with refrigeration function, reducing the amount of reagent empty cavities
36 independent incubation positions for batch pre-warming
Designed with 100 STAT positions
-

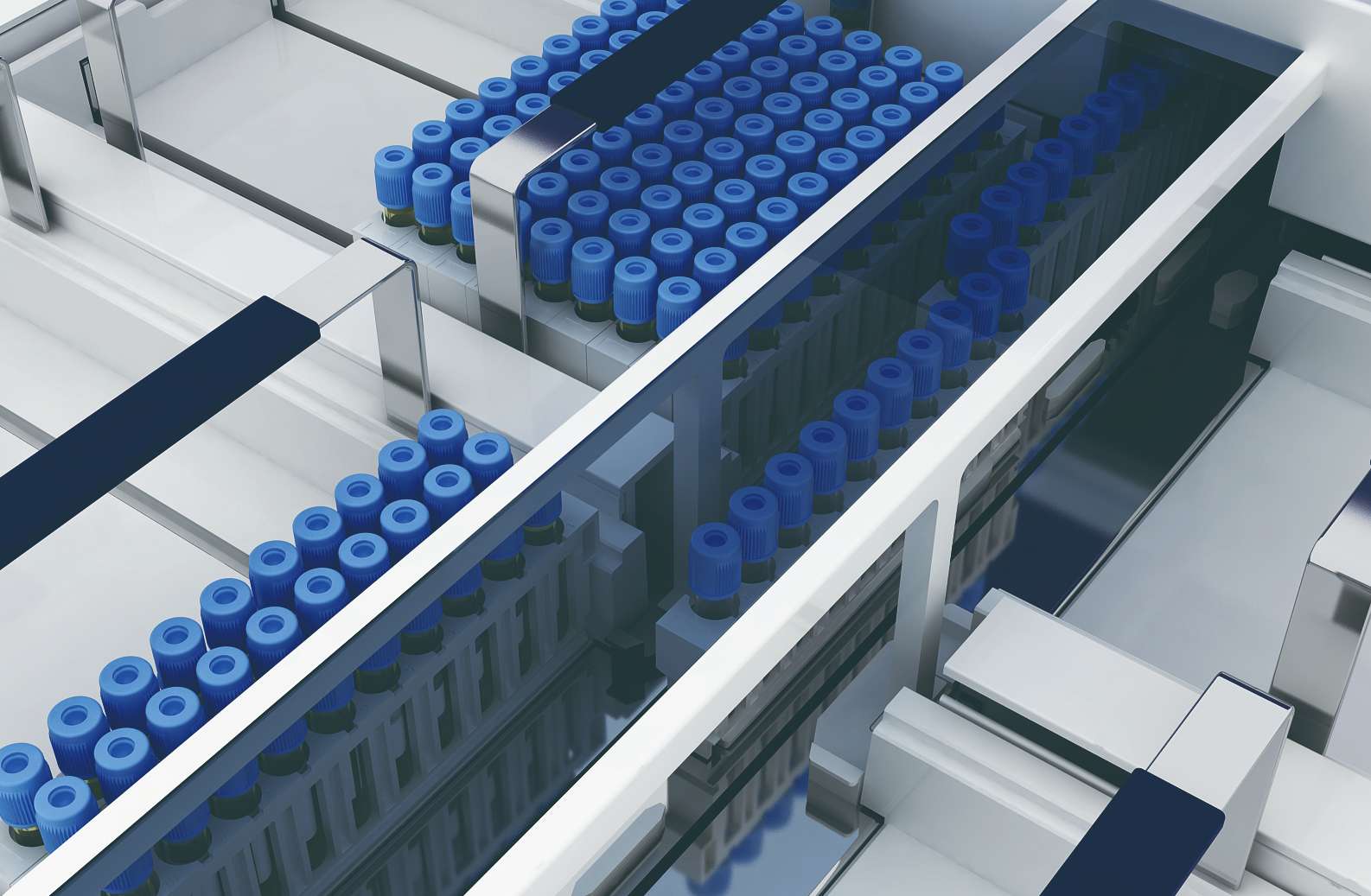

Three Sample Feeding Options
Front injection (100 sample positions)
Front injection + side injection (100 sample positions + 400 sample positions)
Front injection + track injection
-
Intelligent Detection

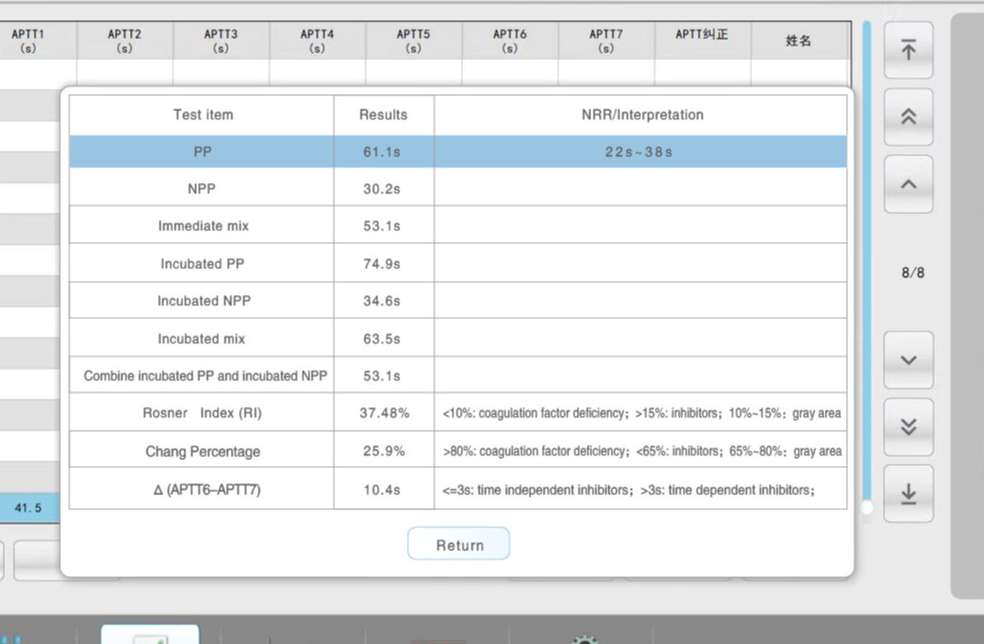

Automatic APTT mixing study验
Identify special samples before testing, including hemolysis, icterus, and lipemia samples, 4 wavelengths (405nm, 570nm, 660nm, 800nm) flexible exchange to reduce interference and improve test accuracy
Output reaction curves automatically to guide analysis of abnormal results
Connect to the UL-2000LAS laboratory automation system
-
Biosafety

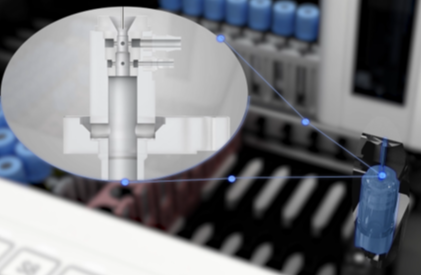

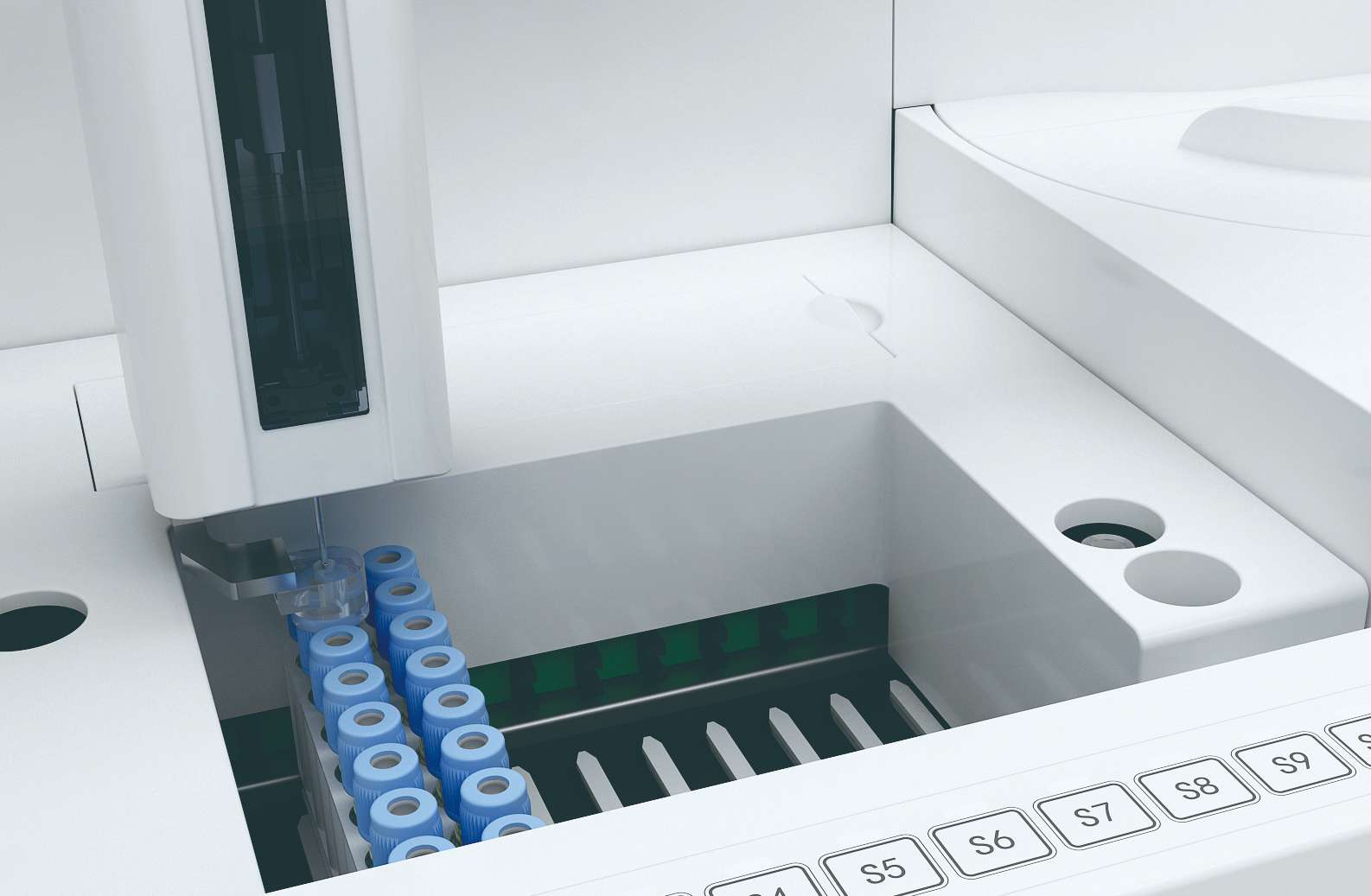

360° rotating barcode reading and cap-piercing without manual operation to improve biosafety
Test sample enclosed throughout the full process to reduce aerosol contamination
Equipped with a complete cleaning system to reduce bio-contamination
Instrument parameters

-
PrincipleOptical
-
Data storage100000 sample results and reaction curves
-
LanguageChinese English
-
Report formatsMultiple forms of report output can be supported
-
Operating environment10℃~30℃,relative humidity ≤80%
-
Storage environment-20℃~55℃,relative humidity≤85%
