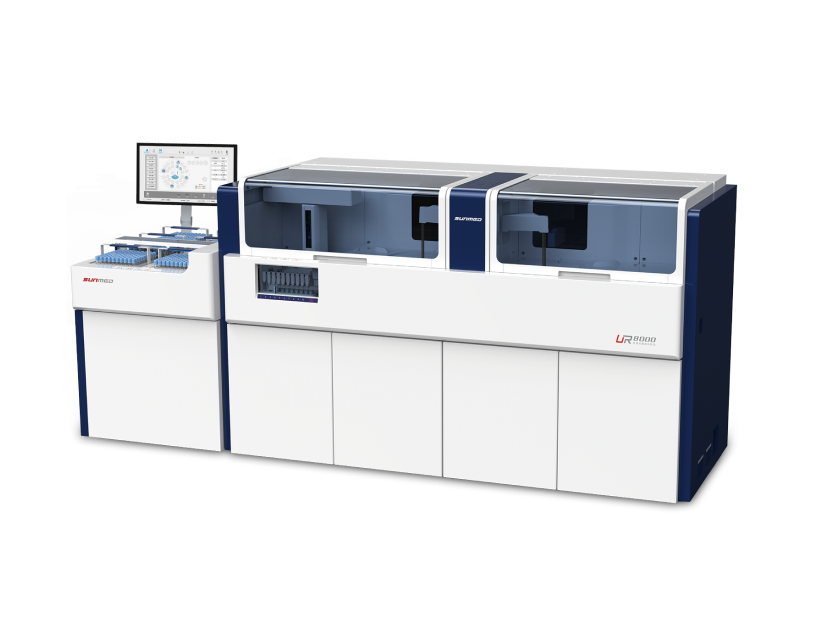

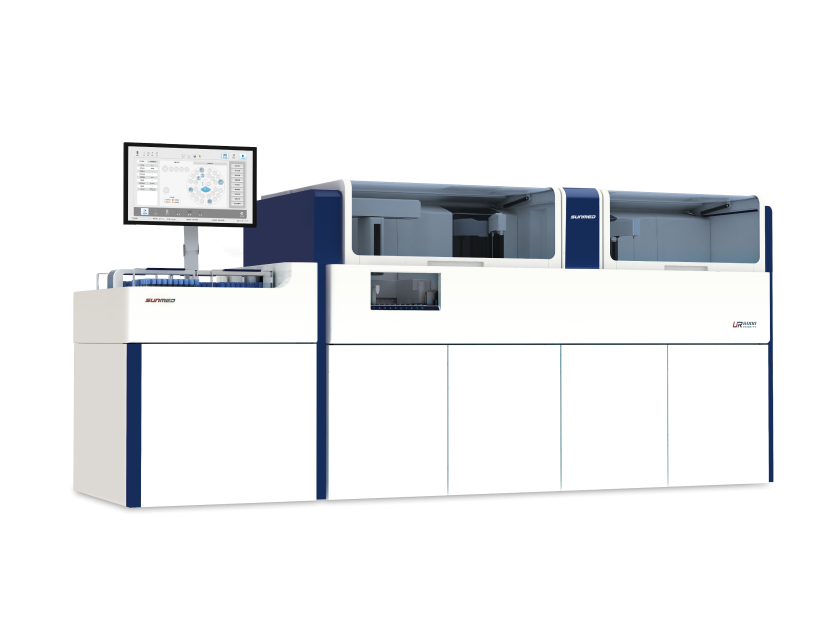

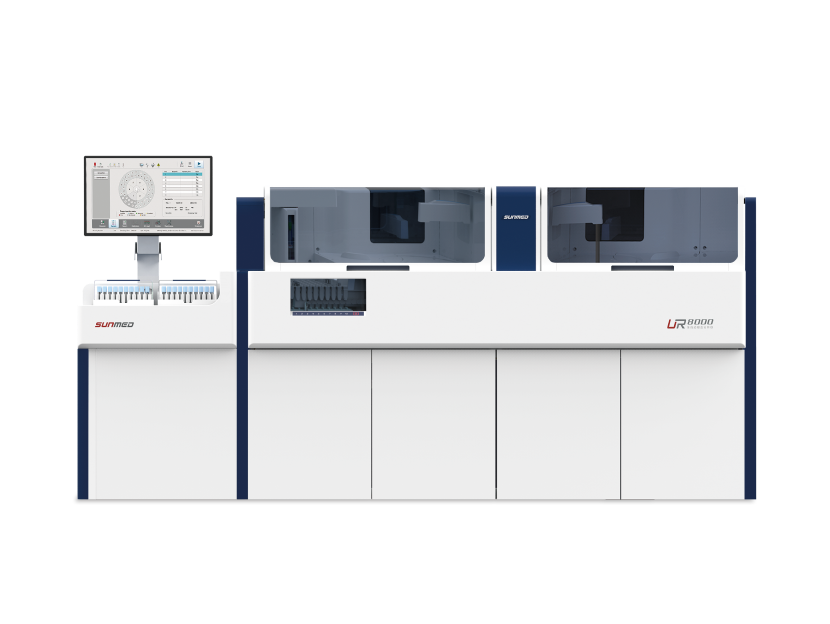

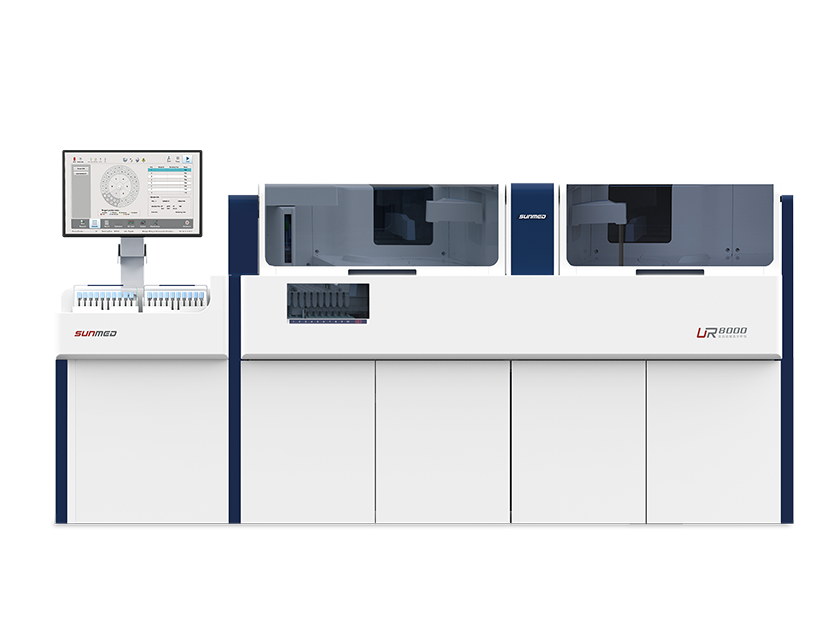

UR8000
coagulation analyzer

Three unique sample feeding modes, ultra-fast constant throughput, higher biological safety, is the perfect combination of coagulation analyzer and coagulation lab automation system.

  • UR800004.png
  • UR800002.png
  • UR800003.png
  • UR800004.png
  • UR800002.png
  • UR800003.png
  • 前进样.png
    Highly Efficient Detection
    • The constant throughput for PT/APTT/FIB/TT/DD: 900T/H

    • Combined throughput for five test items: 180S/H

    • 40 detection channels, each channel can be used for 3 detection methods: coagulation, immunoturbidimetry, chromogenic substrate assay

    • 2000 cuvettes can be loaded simultaneously, dump style adding cuvettes without system interruption

    • 56 tilted reagent positions with refrigeration function, reducing the amount of reagent empty cavities

    • 72 independent incubation positions for batch pre-warming

    • Designed with 100 STAT positions

  • 流水线进样.png
    Three Sample Feeding Options

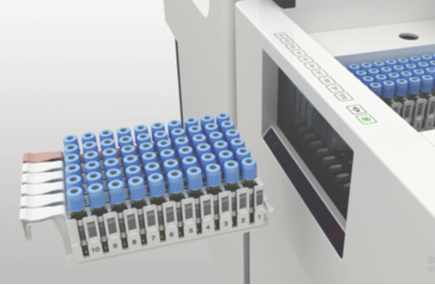

    • Front injection (100 sample positions)

    • Front injection + side injection (100 sample positions + 400 sample positions)

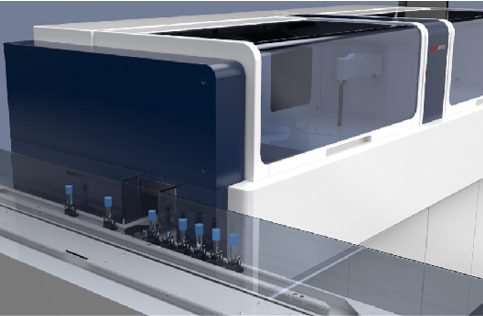

    • Front injection + track injection

  • 微信图片_20230309185106.jpg
    Intelligent Detection

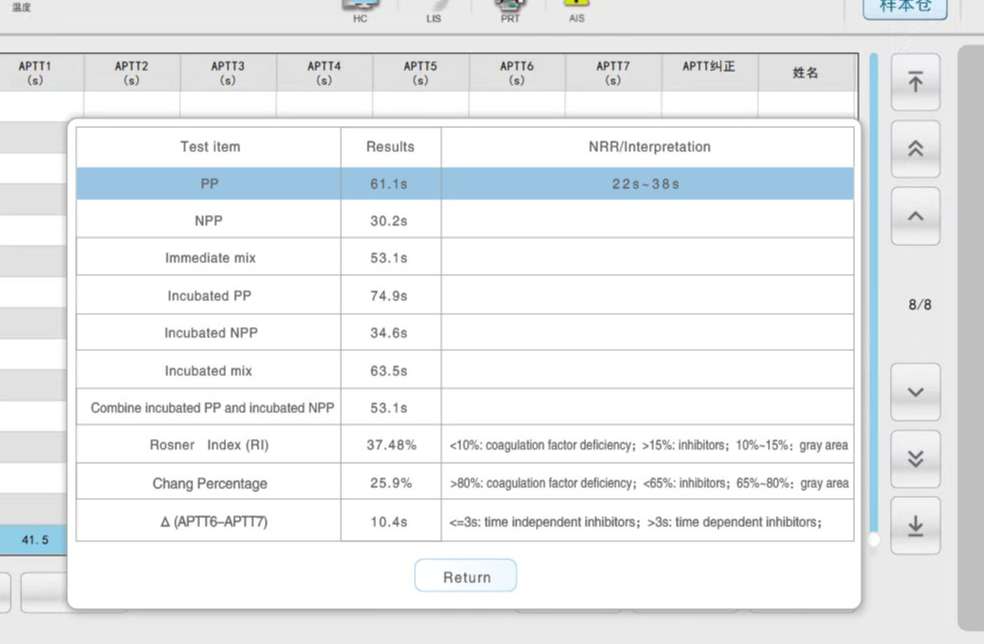

    • Automatic APTT mixing study

    • Identify special samples before testing, including hemolysis, icterus, and lipemia samples

      4 wavelengths (405nm, 570nm, 660nm, 800nm) flexible exchange to reduce interference and improve test accuracy

    • Output reaction curves automatically to guide analysis of abnormal results

    • Connect to the UL-2000LAS laboratory automation system

  • 穿刺针2.jpg
    Biosafety

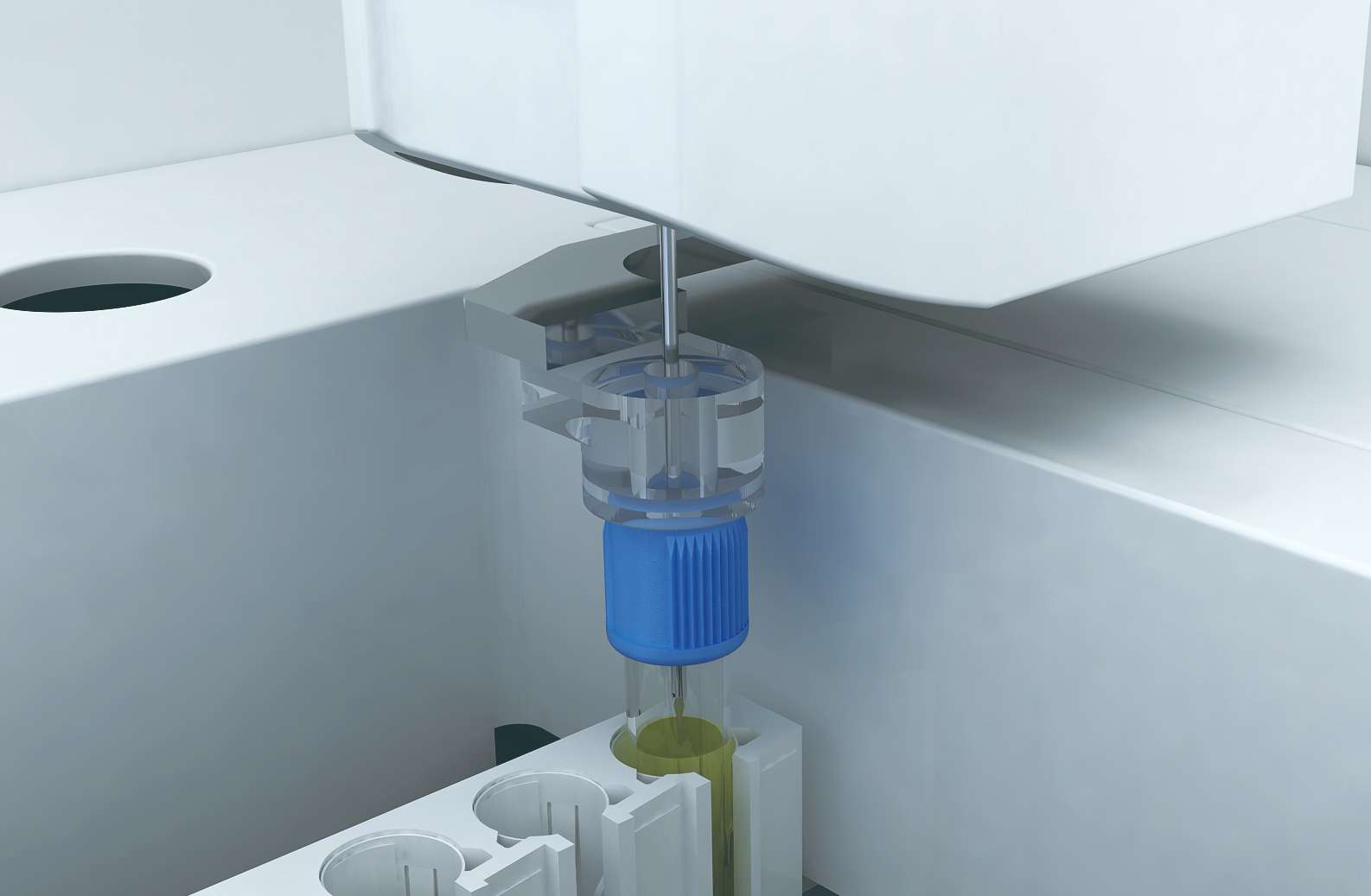

    • 360° rotating barcode reading and cap-piercing without manual operation to improve biosafety

    • Test sample enclosed throughout the full process to reduce aerosol contamination

    • Equipped with a complete cleaning system to reduce bio-contamination

Instrument parameters

  • Principle
    Optical
  • Data storage
    100000 sample results and reaction curves
  • Language
    Chinese/English
  • Report formats
    Multiple forms of report output can be supported
  • Operating environment
    10℃~30℃, relative humidity ≤80%
  • Storage environment
    -20℃~55℃, relative humidity ≤85%
