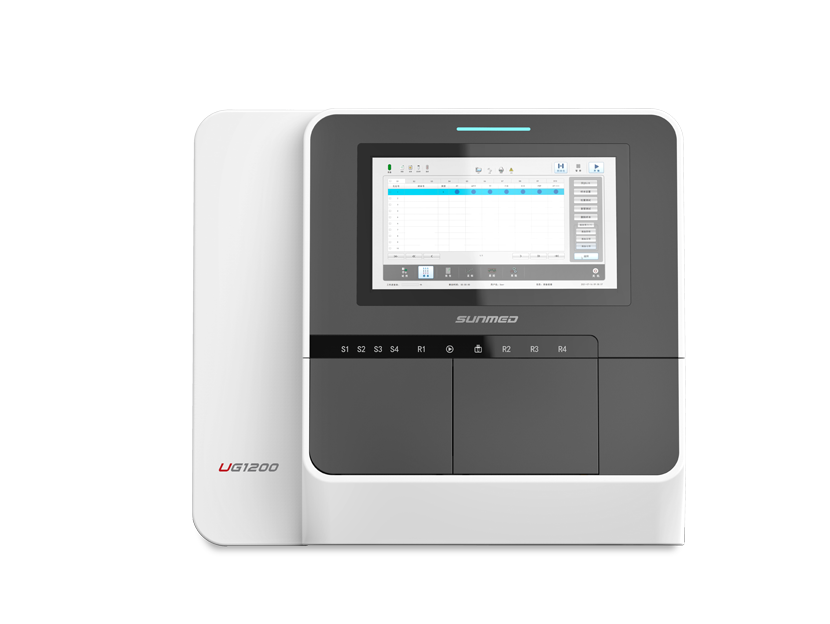

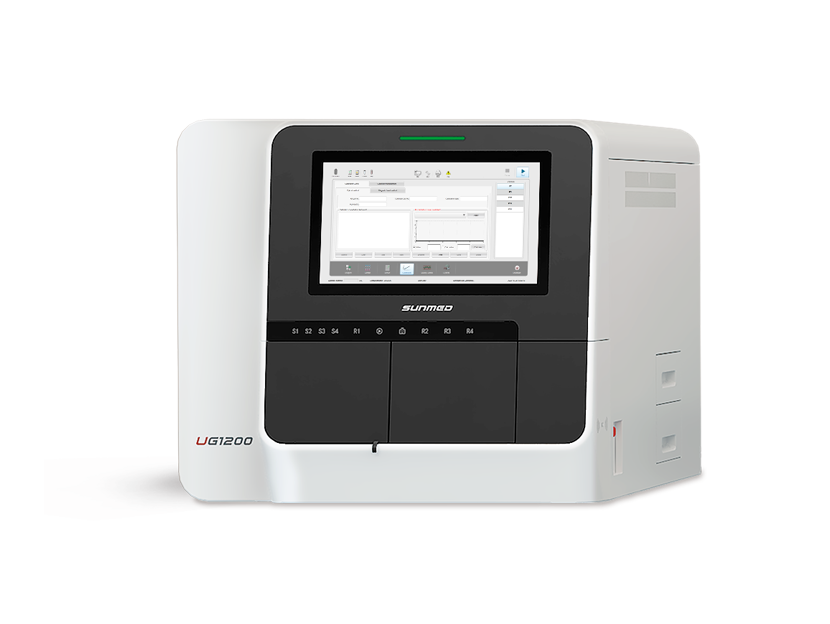

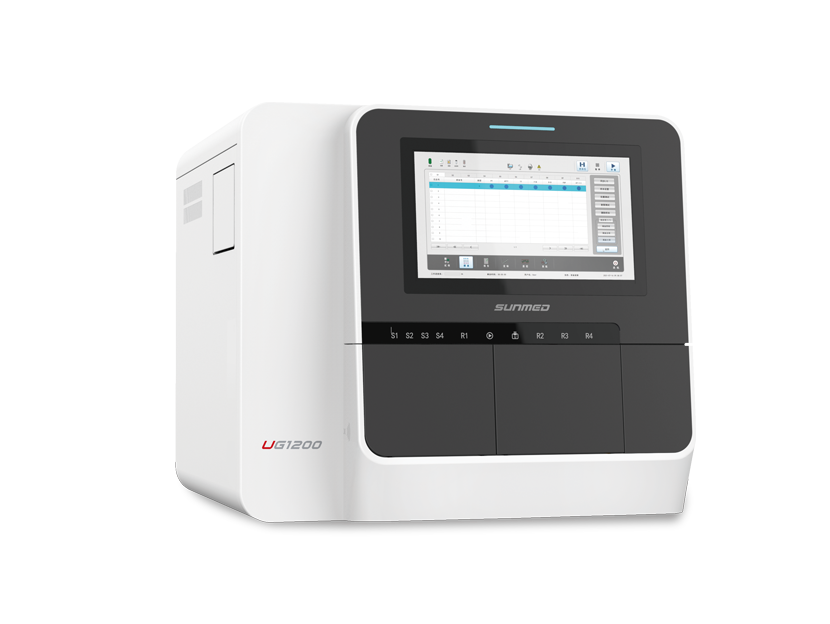

UG1200
coagulation analyzer
Innovative combination of optical and mechanical methods, with platelet aggregation function, walk-away continuous operation, small body, big energy, the king of space efficiency.
-

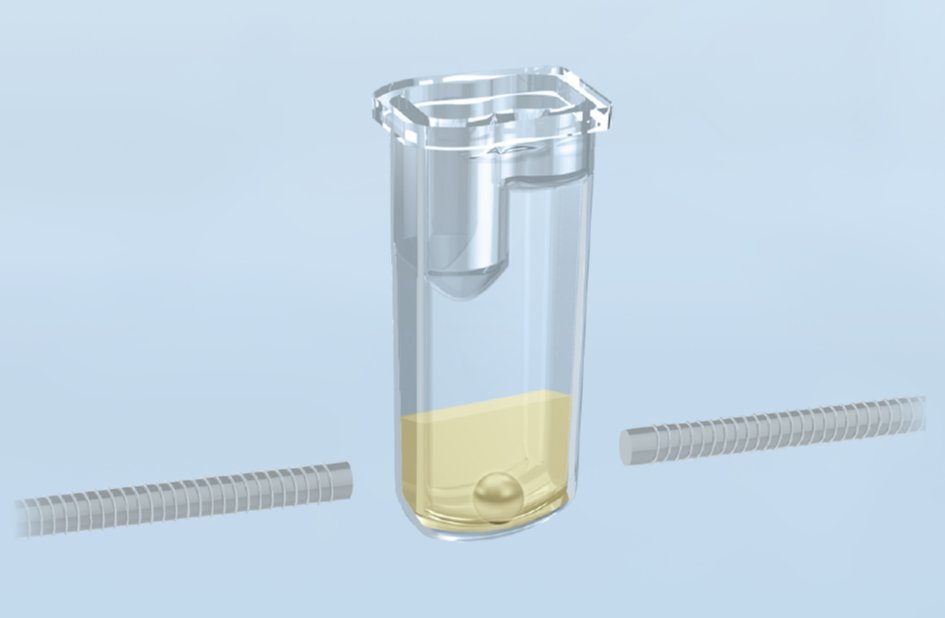

Optical-mechanical coagulation detectionOptical and mechanical dual-method detection, auto-switch to suitable detection channels for severe haemolysis, icterus and lipemia samples.
Coagulation Method: PT, APTT, FIB, TT, Protein S, Intrinsic factor (8/9/11/12), Extrinsic factors (2/5/7/10), Lupus Anticoagulant (LA)...
Chromogenic Method: AT-III, Protein C, Ati-Xa...
Immunoassay Method: FDP, D-Dimer, vWF, Factor 13...
-

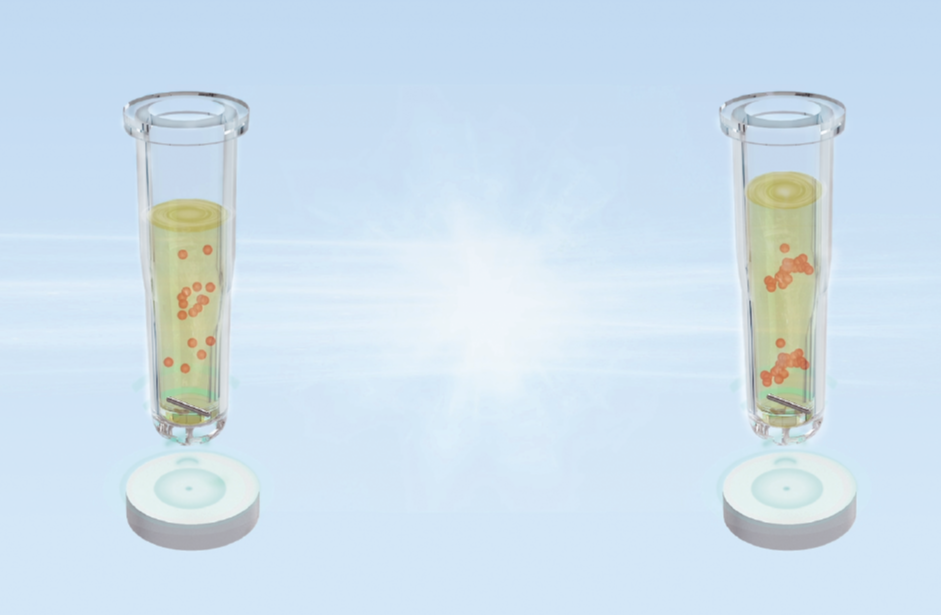

Platelet aggregation testLight transmisson aggregometry (LTA)
Equipped with 5 agonists: AA, ADP, COL, EPI, and RIS
-
Automated Sample Quality Verification with Multi-Wavelength SwitchingMultiple Sample Check: HIL monitoring, volume check and clot detection.

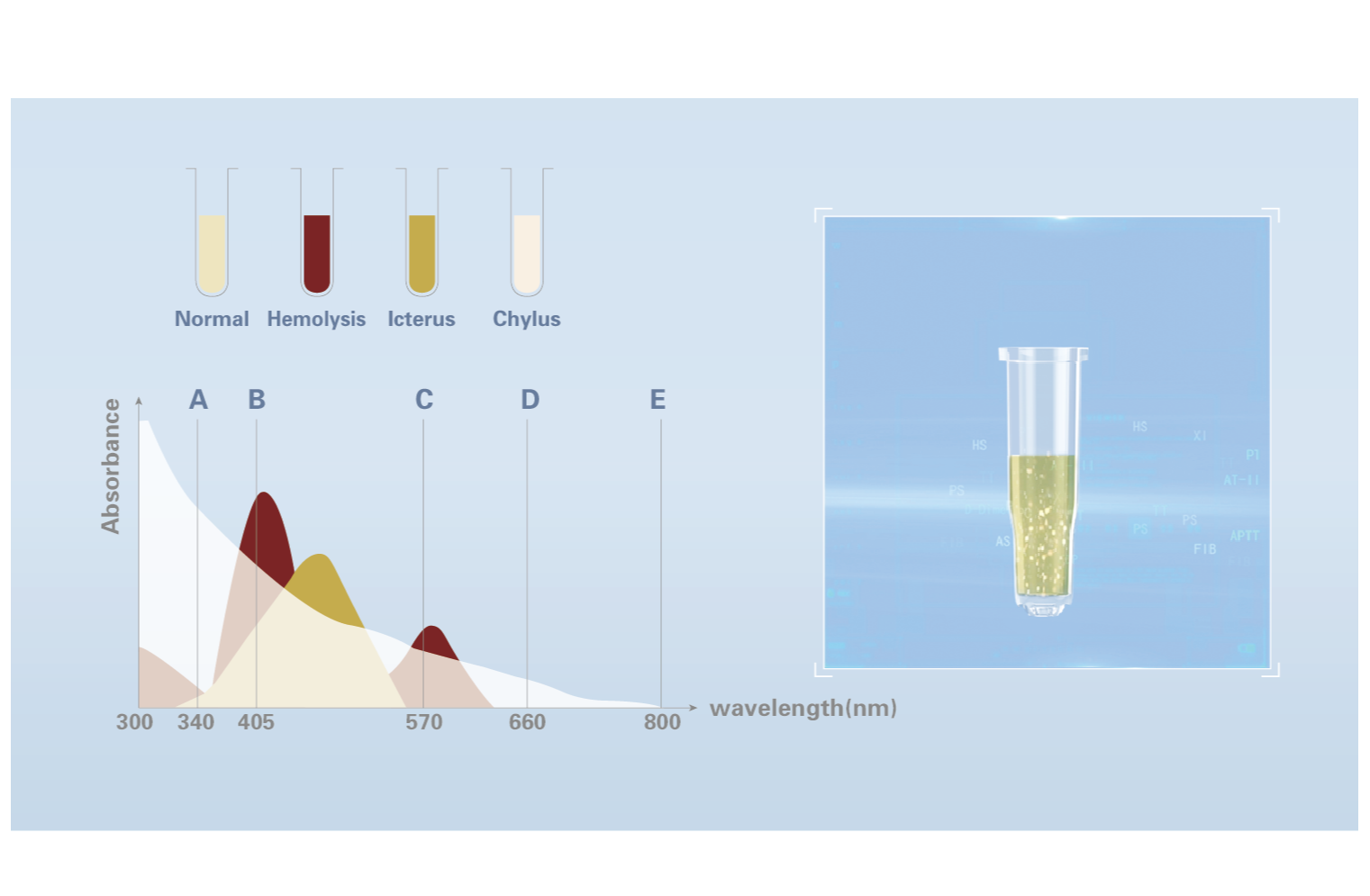

Five Wavelengths (340, 405, 570, 660, 800 nm) to minimize HIL interference.
-
Automated Factor Parallelism & APTT Mixing Study, FIB Multi-Parameter AssaysAutomated factor parallelism and automated APTT mixing studies.
Customized rerun and reflex testing rules for flexible clinical adaptation.
Comprehensive FIB Assay: Clauss, PT-derived, and Immunoturbidimetric methods.
Throughput: PT 150 T/H, PT+PT-derived 300 T/H.
The micro-sampling mode enables rapid and accurate analysis.
-

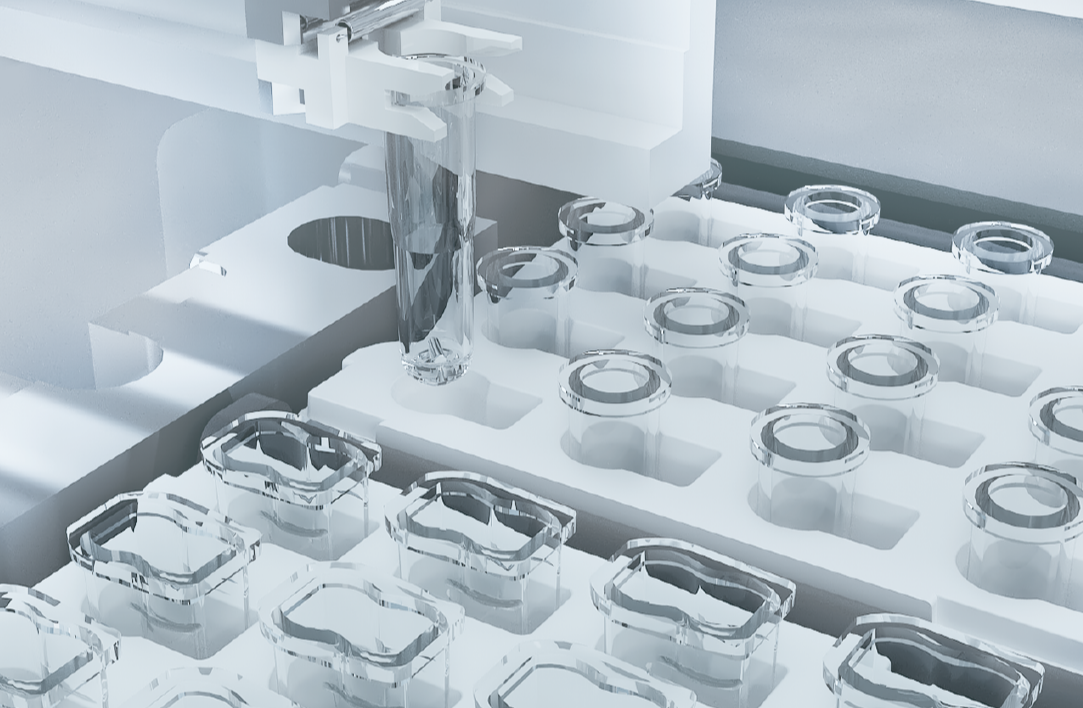

Uninterrupted Operation, Cap-piercing FunctionReplacement of reagents, cuvettes and rinse solution without instrument stopped or test interrupted.
Auto-dilution of concentrated rinse solution to reduce the replacement frequency.
The 2-8°C refrigerated reagent plate ensures reagent stability.

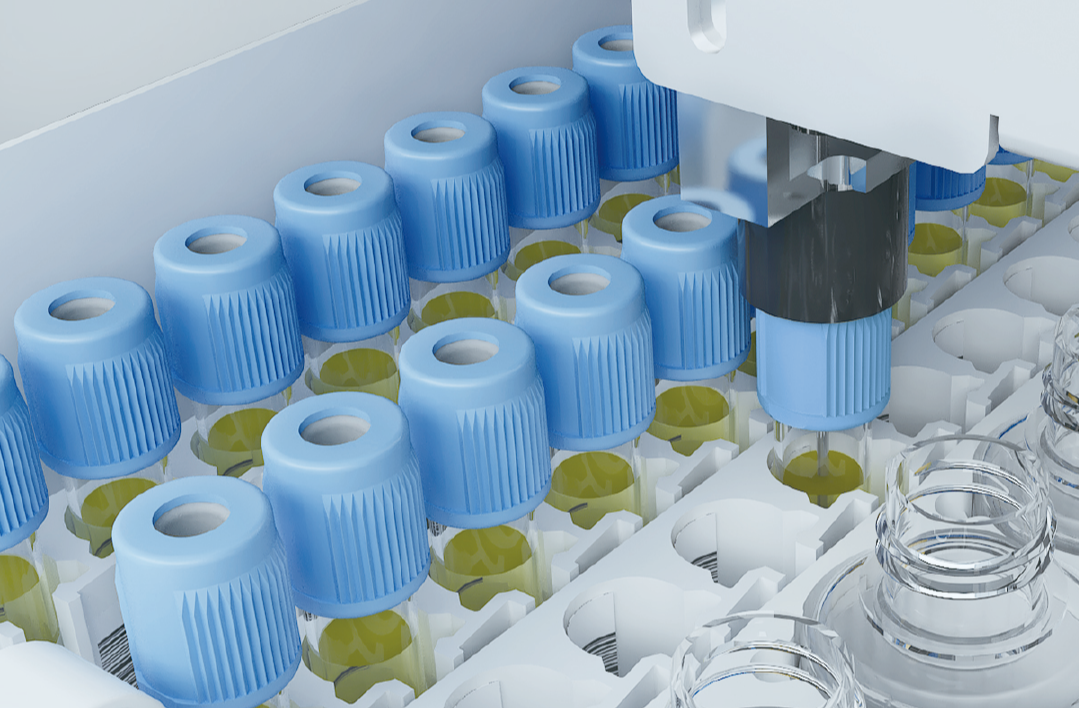

Cap-piercing function technology significantly enhances biosafety.
-
Scheduled Startup and Self-checkScheduled Startup and Self-check to minimize manual preparation.
Real-time updating operation log, to ensure traceable operation records.
Recording the conditions of QC, calibration, maintenance, temperature, etc.

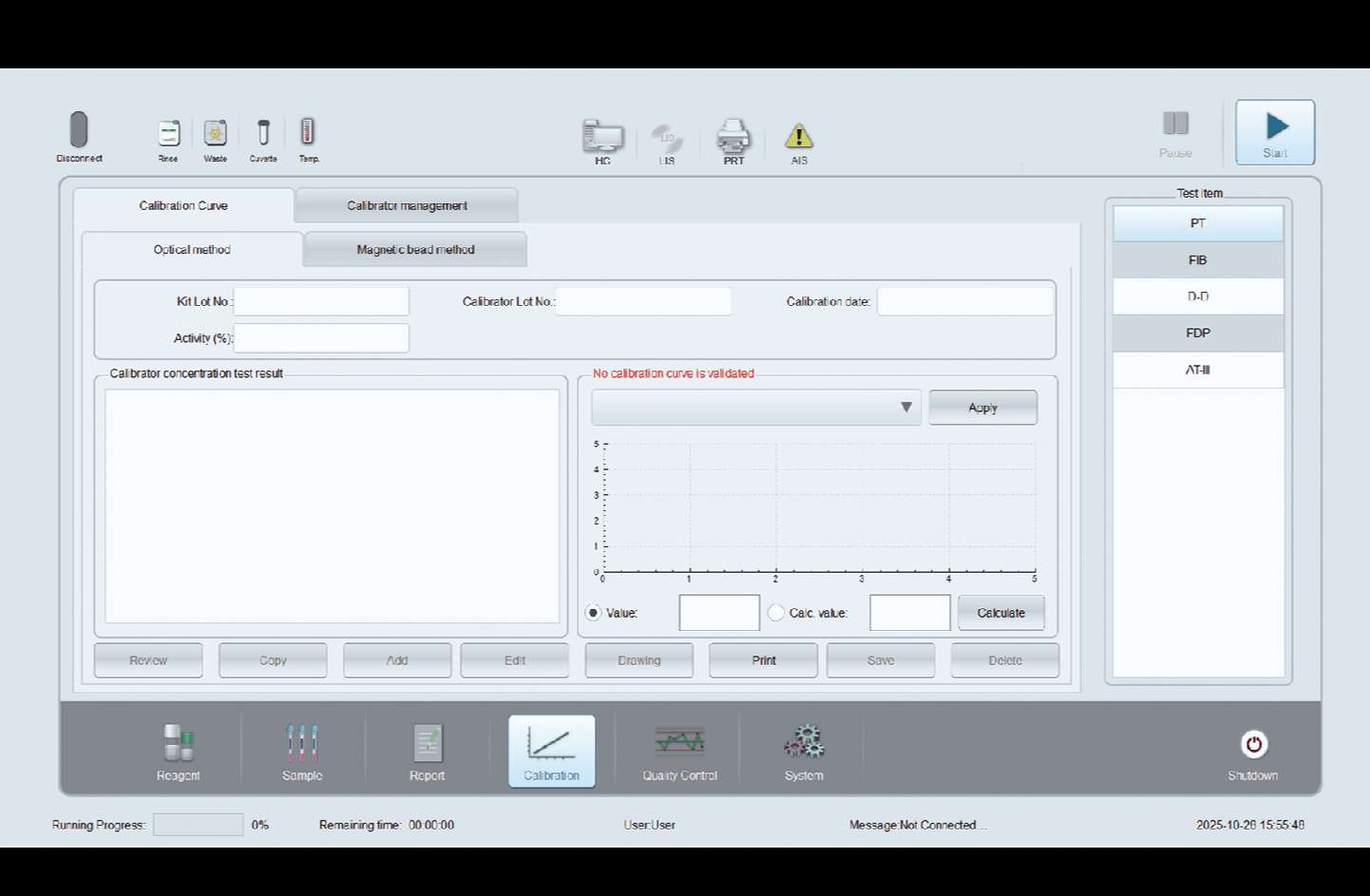

Automatic curve storage with historical recall & reuse.
Comprehensive QC audits, electronic audit trail report with one-click.
Instrument parameters
-
PrincipleCoagulation Method (optical + mechanical), Chromogenic Method, Immunoassay Method, Aggregometry
-
Data Storage100,000 sample results and reaction curves
-
ManagementAutomatic management of dilutions, reruns, pre-calibration, etc.
-
Room EnvironmentAmbient temperature: 10-30°C, Relative humidity: <80%, Atmospheric pressure: 70-106kPa
