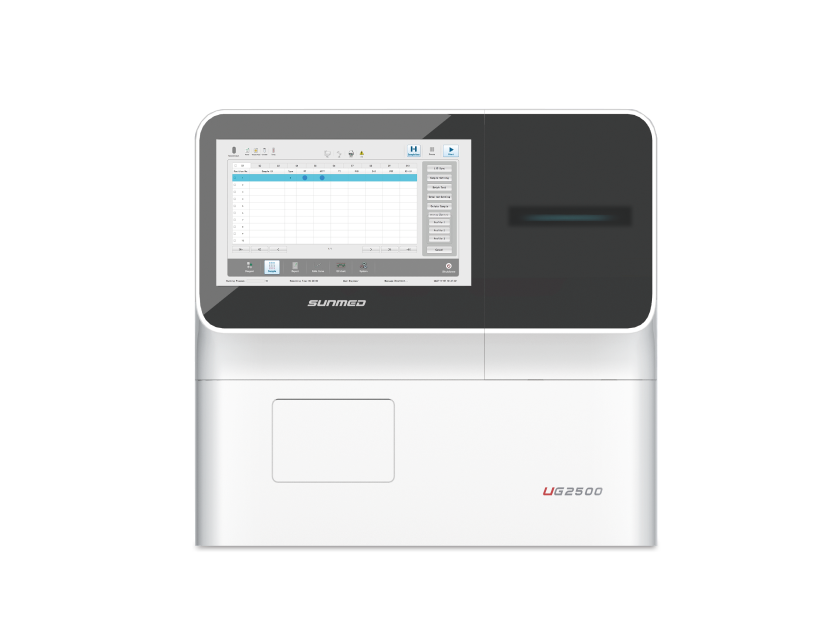

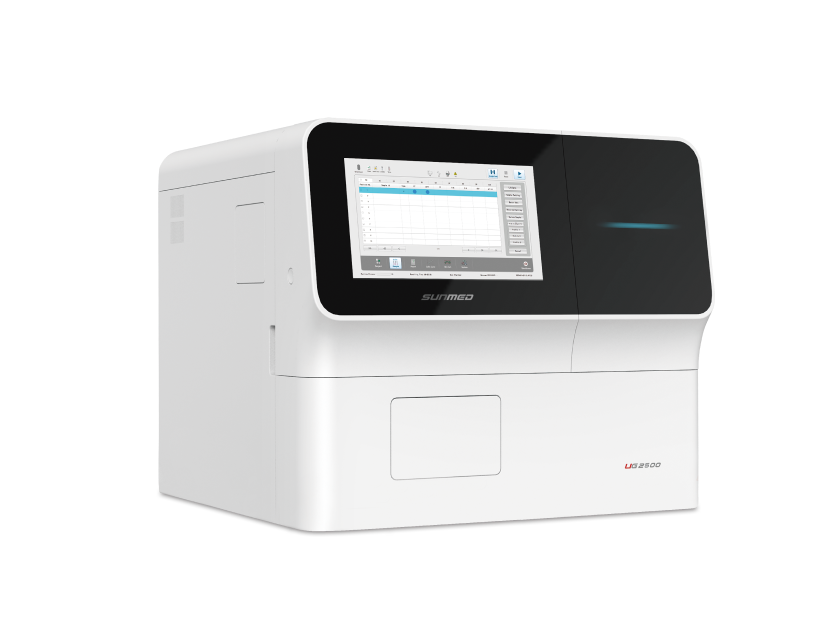

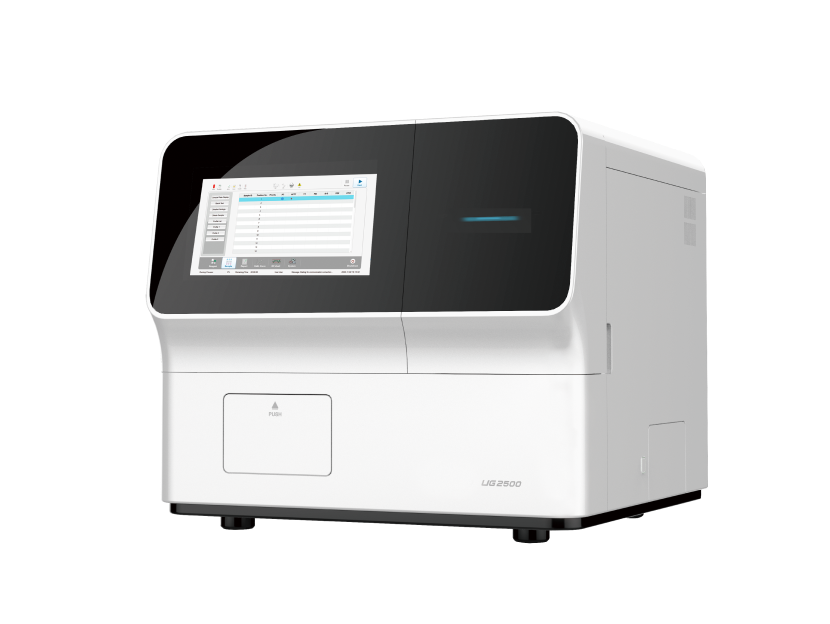

UG2400/2500
coagulation analyzer

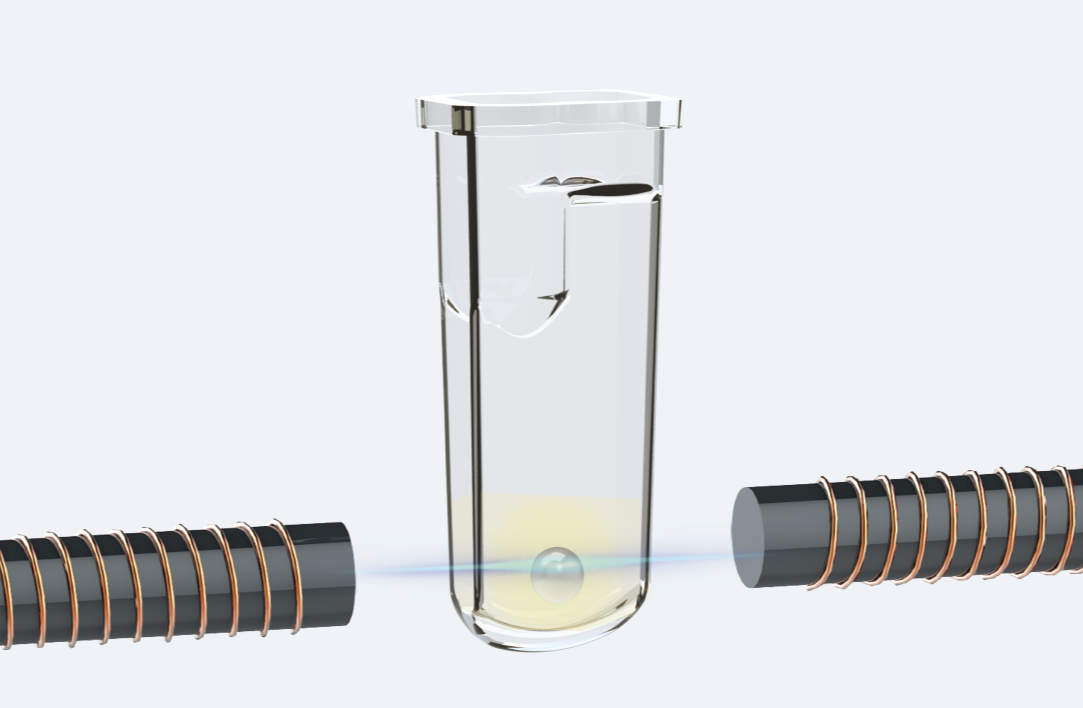

Optical and mechanical dual-method detection, auto-switch to suitable detection channels for severe haemolysis, icterus and lipemia samples.

Combined primary haemostasis and secondary haemostasis detection, with the function of coagulation tests and platelet aggregation tests.

Throughput (PT/TT): 376 Ts/H

STAT samples can be loaded at any time and tested preferentially, saving sample waiting time

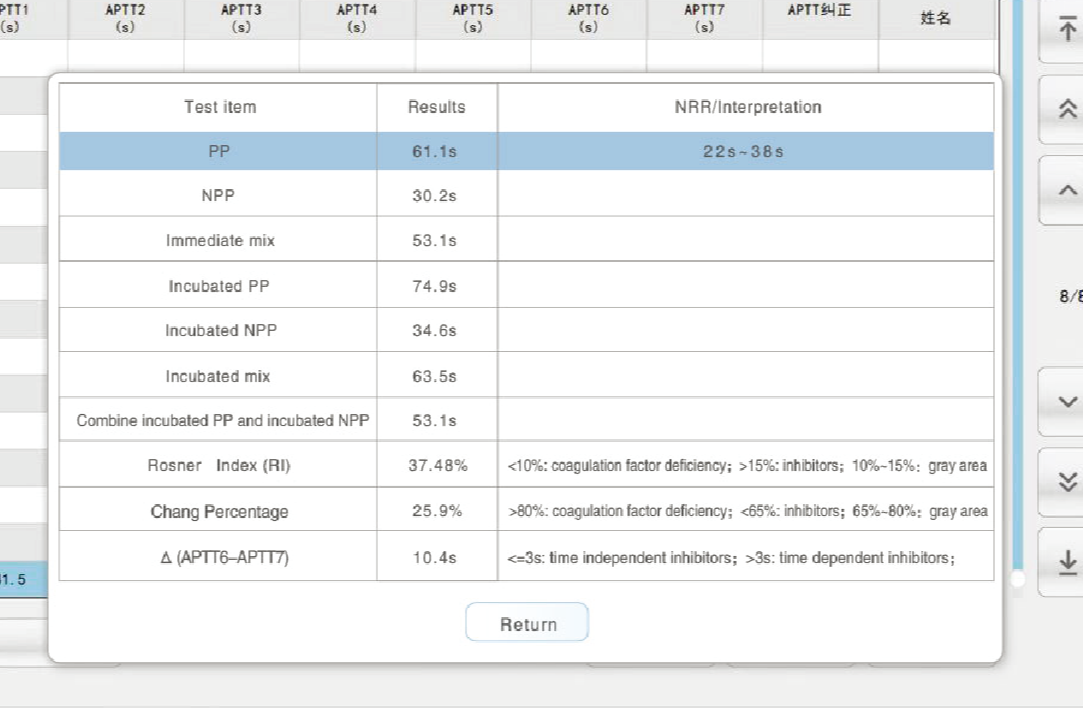

Automated factor parallelism, APTT mixing study, customized rerun and reflex testing

26 detection channels, including optical, mechanical, platelet and factor XIII channels

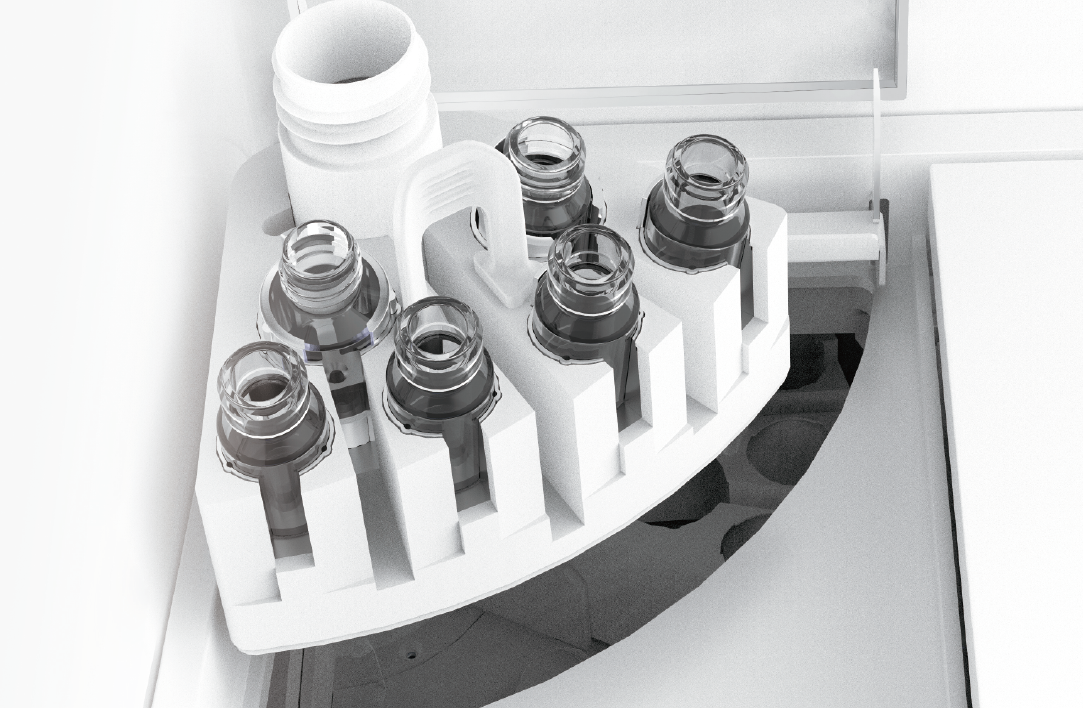

42 reagent positions, cooled within 2-8°C, tilted design to reduce the volume of reagent empty cavities

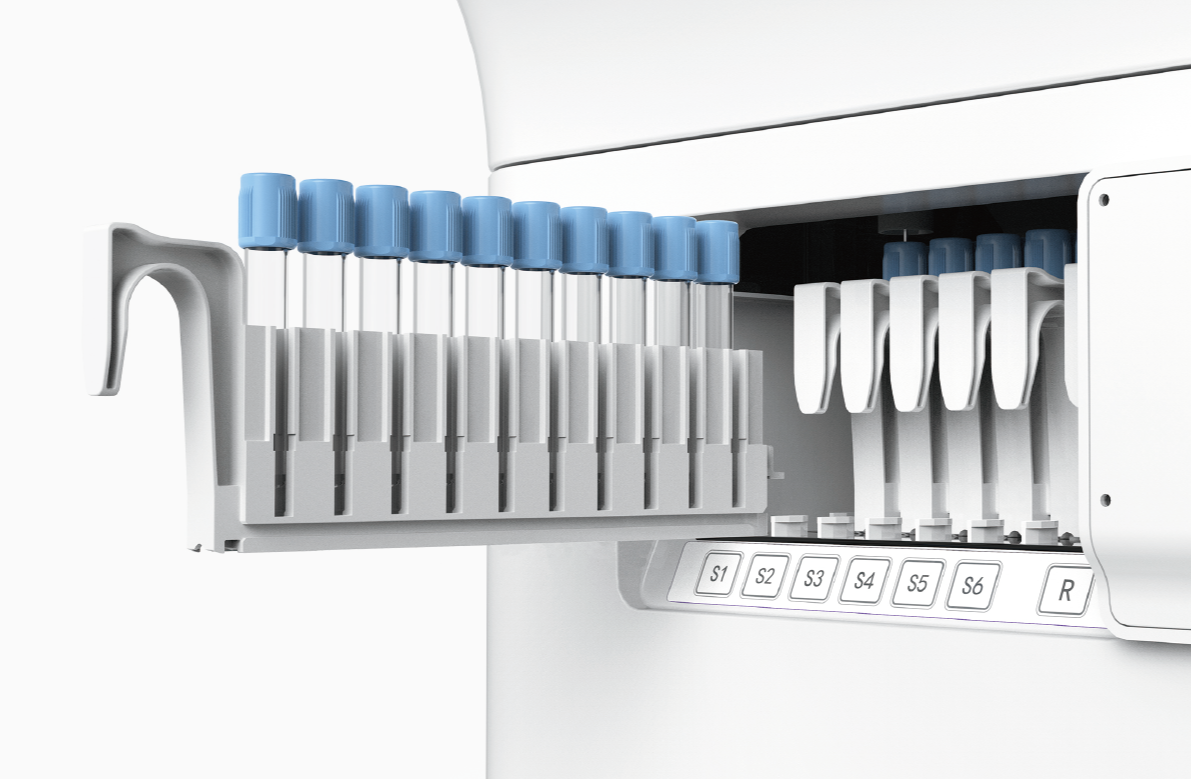

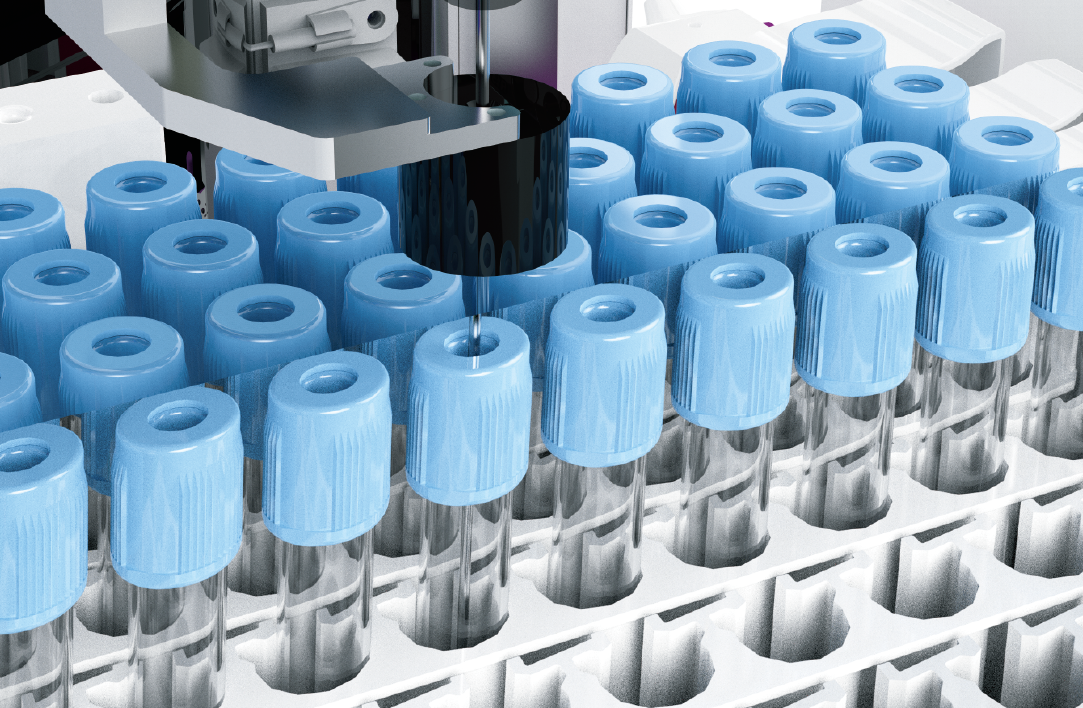

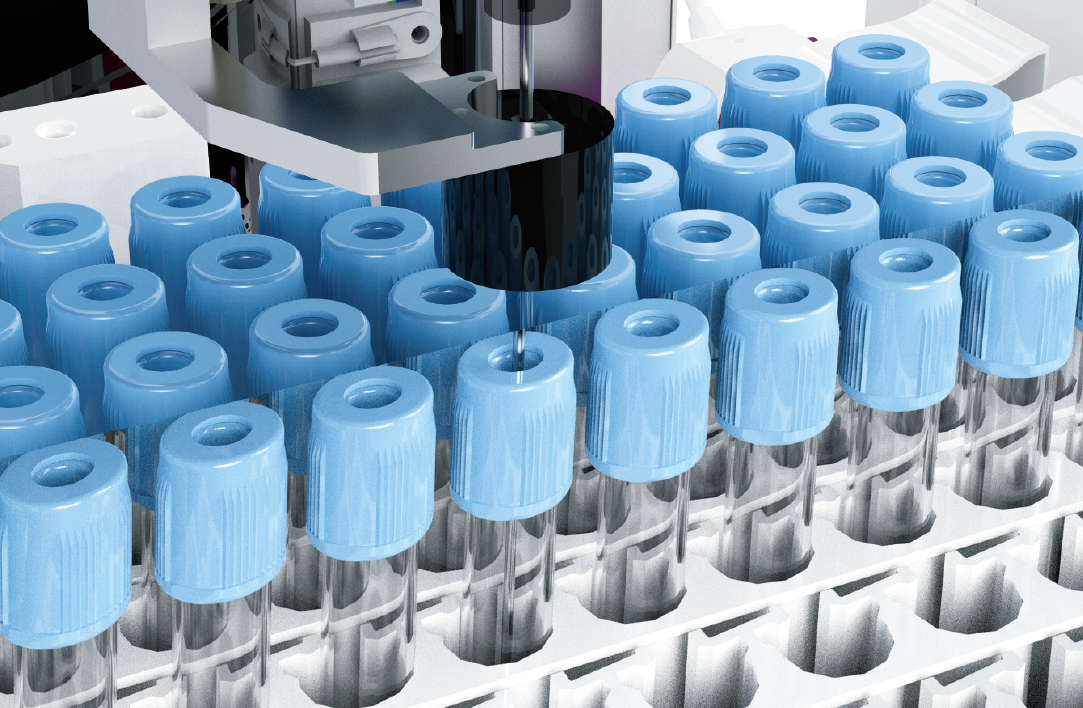

60 built-in sample positions, rack-feed style, each position can be set as a STAT position

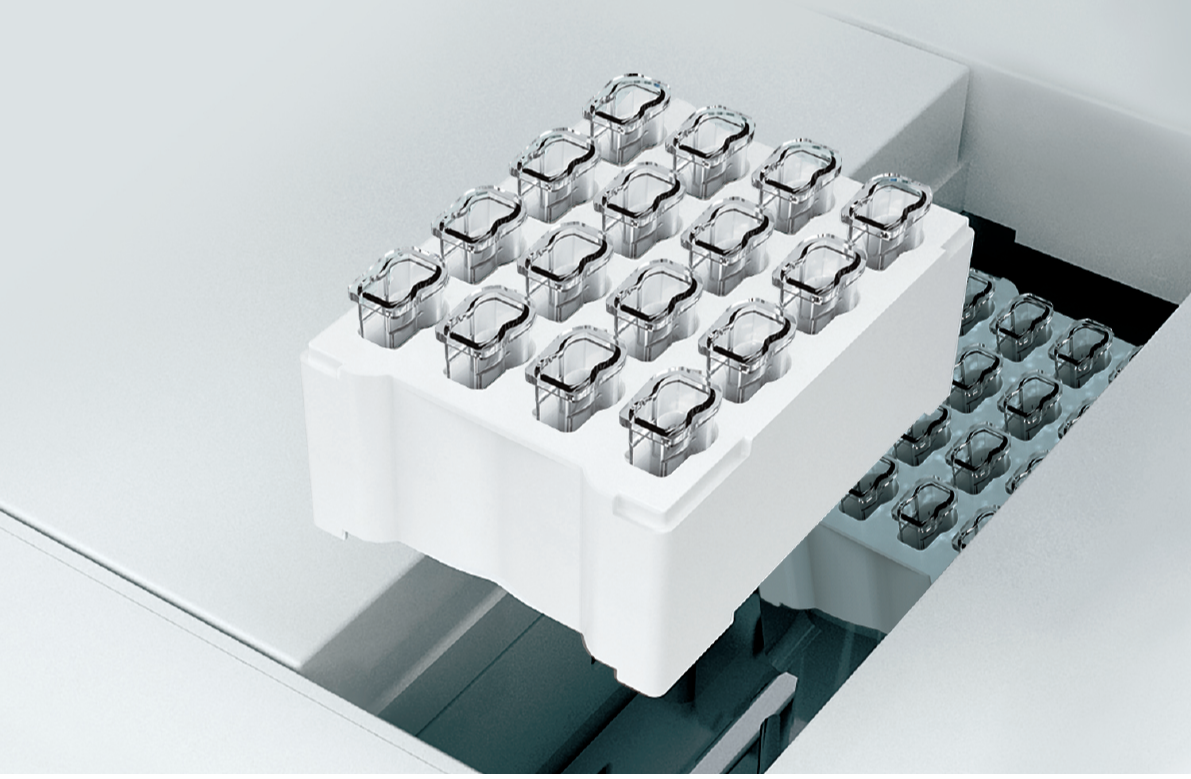

1500 cuvettes can be loaded at one time, continuous dump-style cuvettes loading

Replacement of reagents, cuvettes and rinse solution without instrument stopped or test interrupted

Auto-dilution of concentrated rinse solution to reduce the cost and replacement frequency

Scheduled Power On/Off: automatic startup and self-check at the scheduled time

Sample quality inspection: HIL monitoring, volume check, clotdetection

Five wavelength design (340nm/405nm/570nm/660nm/800nm),estimate the test results of haemolysis, icterus and lipemia samples comprehensively

Real-time online statistics of reagent cycle dosage to predict reagent consumption

Automatic calibration curve storage, identifying and switching based on reagent lot number

Real-time updating operation log, with traceable operation records

Recording the conditions of QC, calibration, maintenance, temperature, etc.

Comprehensive QC audits, electronic audit trail report with one-click
